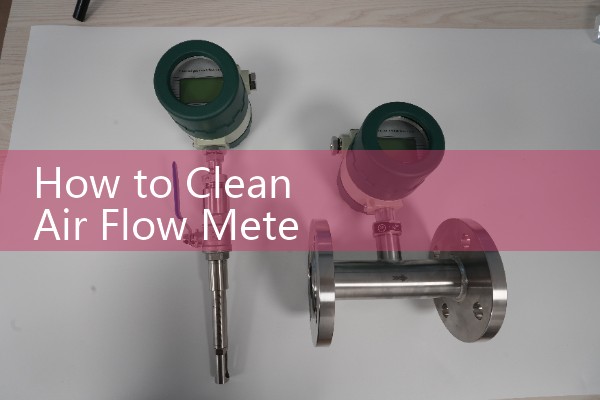

How to Clean Air Flow Meter Sensor
Quick Answer: Disconnect the sensor housing and spray the internal wires with a specialized mass air flow cleaning solvent. Let the sensor dry fully before you refit it. For industrial thermal mass flow meters, always check the manual first because some sensors need dry compressed air only.
What You Need
You need a clean workbench, basic hand tools, and a specialized mass air flow cleaning solvent. Do not use brake cleaner, carburetor cleaner, or window cleaner. These liquids can eat plastic sensor parts or leave a coating that changes the reading. A 200 ml bottle of mass air flow cleaner costs less than 15 USD in most markets.
We have seen this on customer sites many times. A technician grabs the nearest solvent, sprays the sensor, and then the meter reads 15 percent high. The replacement sensor costs more than the correct solvent.
Step by Step Cleaning Procedure
Park the vehicle or shut down the air line. Remove the air flow meter sensor from the housing. Disconnect the electrical plug first. Use a soft cloth to wipe dust from the outside of the sensor housing. Do not touch the hot wire or hot film element with your fingers. Skin oil changes heat transfer and ruins accuracy.
Spray the internal wires with a specialized mass air flow cleaning solvent. Use short bursts. Hold the nozzle 10 cm from the element. Let the solvent run off. Do not scrub the wire. Let the sensor air dry for 20 minutes. Refit the sensor and start the engine or blower. A clean sensor should settle to a stable reading within 2 minutes.
In practice, most engineers skip the drying step. They install the sensor wet and the solvent flashes on the hot wire. That heat flash can crack the element. Wait the full 20 minutes.
Industrial Air Flow Meter Sensors Are Different
Silver Automation Instruments supplies thermal mass flow meters for compressed air, natural gas, and flue gas. These industrial sensors use different housings and elements. A food grade compressed air line at 7 bar in Vietnam may use a DN80 insertion thermal mass flow meter. The sensor element is not the same as a light duty automotive mass air flow sensor.
For industrial meters, you do not spray solvent on the element unless the manual tells you to do it. Most industrial thermal sensors are cleaned with low pressure dry compressed air below 2 bar or a soft brush. If the reading drifts, you check for oil carryover from the compressor, moisture, or dust build up. A paint manufacturer in Southeast Asia had a thermal mass flow meter reading drift because oil mist coated the sensor. Dry air alone did not remove the oil film. The sensor was returned to Silver Instruments for cleaning and recalibration.
Common Mistakes to Avoid
Do not use cotton swabs on the hot wire. The fibers wrap around the element and change the heat transfer. Shop air with oil mist is also a bad choice. Do not dip the whole sensor in solvent. Do not wire brush the sensor body. Each mistake costs a new sensor or a bad calibration.
Because industrial air flow meters often carry gas with trace oil, you need a cleanup plan for the whole air system. Drain the receiver tank, check the filter element, and keep the dew point stable. Clean the flow meter sen
When Cleaning Is Not Enough
A clean air flow meter sensor still needs to match the meter electronics and pipe size. If you cleaned the sensor and the reading is still off, check the following items. Verify the sensor direction. Verify the pipe diameter setting in the transmitter. Check the 4 to 20 mA HART output scaling. A zero or span shift often looks like a dirty sensor but the real cause is a configuration problem.
Last year a customer in Vietnam asked us about a compressed air flow meter that read 30 percent low after cleaning. The problem was not the sensor. The transmitter range was set to 0 to 500 Nm3/h but the plant ran at only 80 Nm3/h. We corrected the range and the reading matched the plant air compressor output.
Silver Instruments Industrial Air Flow Meters
Silver Automation Instruments offers thermal mass flow meters for air, nitrogen, oxygen, and natural gas. We supply inline and insertion models from DN15 to DN300. Outputs include 4 to 20 mA HART, pulse, and RS485 Modbus. We support calibration for mass flow units in kg/h or Nm3/h.
For a DN15 to DN50 compressed air line, an inline thermal mass flow meter fits well. For a DN80 to DN300 main header, an insertion thermal mass flow meter costs less and is easier to service.
If you need an air flow meter for compressed air, gas blending, or flare gas, send us your gas type, pressure in bar, temperature in °C, pipe size in DN, and flow range in Nm3/h or kg/h. We reply with a product selection and price.
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
FAQ
Can I use isopropyl alcohol to clean an air flow meter sensor?
Do not use isopropyl alcohol on a hot wire or hot film air flow meter sensor. Isopropyl alcohol can leave a residue and may damage the sensor substrate. Use a specialized mass air flow cleaning solvent.
How often should I clean an air flow meter sensor?
For automotive sensors, clean the sensor only when you see a problem like rough idle or slow throttle response. For industrial thermal mass flow meters, inspect the sensor during planned maintenance every 6 to 12 months. Many sites clean with low pressure dry compressed air only.
What happens if I touch the air flow meter sensor wires?
Skin oil changes the heat transfer on the sensor element. The meter may read high or low after installation. If you touch the wires by accident, clean them with the correct solvent and let the sensor dry fully.
Can I clean an industrial thermal mass flow meter with the same mass air flow cleaner?
Most industrial thermal mass flow meters do not allow solvent spraying. Check the manufacturer manual. Some sensor types allow a soft cloth with a mild solvent, but only if the manual lists it. Many need low pressure dry compressed air or factory service. When in doubt, contact Silver Instruments with the model number.
When should I replace the sensor instead of cleaning it?
Replace the sensor if you see cracks, broken wires, corrosion, or a bent housing. If the reading still drifts after cleaning and a zero check, you may have a damaged sensor. Contact Silver Instruments with the model number and we can advise repair or replacement.
