Drip Flow Meter: Sizing Low Flow Agricultural Landscape Irrigation Gauges
Quick Answer: For drip lines and landscape zones from 0.2 to 20 L/min, choose a DN10 to DN25 flow meter with pulse or 4-20 mA HART output. An electromagnetic flow meter works for most conductive water. An oval gear flow meter gives better repeatability below 1 L/min for clean water and fertilizer dosing.
This guide covers drip flow meter sizing for low flow agricultural landscape irrigation gauges. Most engineers skip this part. A drip zone does not flow like a main line. A drip zone starts at a trickle, traps air, and stops suddenly. A meter sized for a 50 mm header will read zero on a 16 mm lateral because the velocity is too low.
We saw this on a banana farm in Vietnam. The site ran 2.3 L/min per zone through a DN50 turbine meter. The display stayed at zero. The farm replaced that DN50 meter with a DN15 electromagnetic flow meter from Silver Automation Instruments. The totalizer started counting immediately.
Typical Flow Ranges for Agricultural Drip and Landscape Irrigation
Drip emitters usually discharge 1 to 4 L/h per emitter. A small residential landscape zone may run 0.5 to 5 L/min. A row crop drip block may run 10 to 30 L/min. A greenhouse bench with drip stakes or fogging often runs 0.1 to 2 L/min.
Because velocity in DN25 pipe at 2 L/min is below 0.1 m/s, many standard meters will not register flow. You need a meter designed for low velocity or positive displacement.
Meter Types That Work for Low Flow Irrigation
Electromagnetic flow meter. An inline electromagnetic flow meter measures conductive water from 0.3 L/min in a DN15 line. It has no moving parts and handles small particles. It needs a straight run of 5 pipe diameters upstream. We recommend it for most agricultural drip zones with water conductivity above 20 µS/cm.
Oval gear flow meter. For clean water below 1 L/min or fertilizer dosing, an oval gear meter sized for 0.02 to 5 L/min gives high repeatability. It is a positive displacement meter. It does not tolerate sand or grit. Many landscape contractors use oval gear meters for irrigation audits and leak detection.
Coriolis mass flow meter. For fertilizer, acid, or biostimulant injection at 0.5 to 30 kg/h, a Coriolis meter measures mass directly. It ignores viscosity changes and density shifts. We supply small-bore Coriolis meters for dosing skids and greenhouse fertigation systems.
Ultrasonic flow meter. Clamp-on ultrasonic meters do not work well below 0.1 m/s. In practice, they are not the first choice for drip lateral sizing. They fit large irrigation mains where cutting pipe is not possible.
Sizing Parameters You Should Send to Us
Send pipe size in DN, flow range in L/min, water pressure in bar, water temperature in °C, and power supply. Also tell us if the water is from a river, bore, pond, or municipal line. The amount of suspended solids matters because it changes meter selection.
For most drip systems we need these values:
Pipe size DN10 to DN50
Minimum and maximum flow rate in L/min
Pressure in bar and temperature in °C
Output signal needed: pulse, 4-20 mA, Modbus, or HART
Power supply: 24 VDC, 220 VAC, or battery
Installation Notes for Low Flow Accuracy
Install the meter in a flooded pipe. A partially full drip lateral causes air pockets and false readings. For electromagnetic flow meters, keep the meter at a low point or use a check valve to maintain back

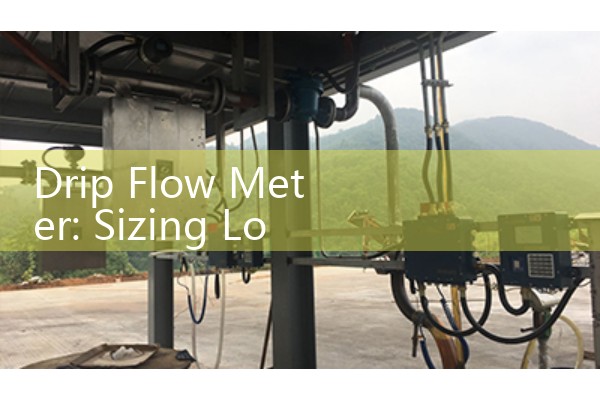

_600x400.jpg)
Upstream straight run matters more at low flow. Use at least 5 pipe diameters for a DN15 electromagnetic flow meter. For oval gear meters, install a Y strainer with 60 mesh or finer. Roots, algae, and sand will jam a positive displacement meter quickly.
Do not install a drip meter directly after a solenoid valve. Sudden valve opening causes water hammer and air release. Wait 10 pipe diameters after a valve if space allows.
Model Pairing Examples by Application
A landscape contractor in Queensland monitored 12 zones from 0.5 to 5 L/min. Silver Instruments supplied a DN15 electromagnetic flow meter with pulse output. The control system counted liters per zone and shut off valves based on total flow.
A date palm farm in Saudi Arabia needed a totalizer for a 20 L/min drip manifold. We recommended a DN25 electromagnetic flow meter with 4-20 mA HART output. The farm connected the signal to a remote telemetry unit and tracked daily water use.
A greenhouse in Mexico dosed fertilizer at 0.8 to 6 L/h. A DN10 oval gear flow meter provided feedback for the dosing pump. The display showed both flow rate and total liters, so calibration was quick.
How to Select a Drip Flow Meter in One Step
Start with the minimum flow rate, not the maximum. A meter can usually handle the maximum within its range. The minimum flow decides if the meter will read at all. Then confirm the pipe connection size and output signal.
For conductive water and flows above 0.3 L/min, choose a DN15 electromagnetic flow meter. For clean water below 1 L/min or for dosing, choose an oval gear meter. For fertilizer mass flow below 0.5 kg/h, choose a small Coriolis meter.
Contact Silver Automation Instruments for a Quote
Send us your pressure in bar, temperature in °C, pipe size in DN, and flow range. Tell us the water source, filter mesh size, and power supply. Our engineers will return a model and price within one working day.
Tel: +86-135-1213-1526
Whatsapp: 86-135-12131526
WeChat: +86 13512131526
Website: flow-meter.com.au
FAQ: Drip Flow Meter Sizing for Low Flow Irrigation
What is the minimum flow a drip flow meter can measure?
A DN10 oval gear meter can measure 0.02 L/min. A DN15 electromagnetic flow meter from Silver Automation Instruments can measure 0.3 L/min. The exact minimum depends on water conductivity and installation.
Which meter is best for low flow agricultural irrigation?
For most drip zones, a DN15 electromagnetic flow meter is the best balance of cost, accuracy, and maintenance. It has no moving parts and handles small particles. For very low clean water flows below 1 L/min, choose an oval gear meter.
Can I use a turbine meter for drip irrigation?
Usually no. Turbine meters need a minimum velocity that drip lines rarely reach. A DN50 turbine meter will likely read zero at 2 L/min. Use an electromagnetic or oval gear meter instead.
Do I need a straight pipe run for a low flow meter?
Yes. For a DN15 electromagnetic flow meter, keep at least 5 pipe diameters upstream and 2 pipe diameters downstream. For oval gear meters, straight run is less critical but a strainer is required.
What output signal should I choose for an irrigation flow meter?
Choose pulse output for totalizing water volume per zone. Choose 4-20 mA HART for remote flow rate monitoring. Many controllers accept both signals. Confirm the input type on your controller before you order.
