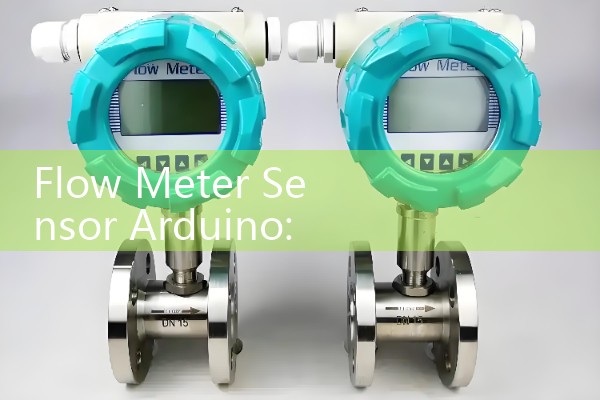

1. Flow range of vortex flowmeter
The flow range of vortex flowmeter is mainly determined by the sensor diameter and fluid properties. The larger the diameter, the wider the measurable flow range. The conventional liquid measurement range is between 0.5m/s and 7m/s flow rate, and the gas measurement range is between 5m/s and 60m/s. 1. Correspondence between caliber and flow rate (under normal temperature water conditions) The flow range is directly related to the instrument caliber, and the following are typical parameters (referring to the product manuals of mainstream domestic manufacturers such as Chuanyi and Ganges in 2023): • DN15: minimum about 1.2 m ³/h, maximum about 15 m ³/h • DN25: minimum about 3 m ³/h, maximum about 40 m ³/h • DN50: minimum about 10 m ³/h, maximum about 150 m ³/h • DN100: minimum about 40 m ³/h, maximum about 650 m ³/h • DN200: minimum about 150 m ³/h, maximum about 2500 m ³/h • DN300: minimum about 300 m ³/h, maximum about 5500 m ³/h. 2. Influence of fluid medium • Liquid measurement (Water, oil, etc.): The flow rate range is usually 0.5-7 m/s, and liquids with viscosity higher than 30cP will significantly increase the measurement lower limit. Gas measurement (air search, steam, etc.): The flow rate range is usually 5-60 m/s, and low-pressure gases may have an increased lower limit flow rate due to low density. • Steam measurement: It is necessary to distinguish between saturated steam and superheated steam, and the flow range should be calculated based on temperature and pressure compensation to determine the actual mass flow rate. Avoid long-term use below the lower limit of 20%, otherwise the signal stability will deteriorate and errors will increase. • The maximum flow rate sh
4. The extended range ratio of the standard vortex flowmeter is 1:10~1:15, and models using dual sensors or digital signal processing technology can be extended to 1:20~1:30 (such as Emerson high-precision models), but the price is higher. The actual selection should be strictly based on the calculation of medium operating parameters (temperature, pressure, density, viscosity). It is recommended to directly use the selection software provided by the manufacturer or check the latest version of the product manual to obtain accurate data.
2. Common faults and troubleshooting methods of vortex flowmeter "Knowledge sharing"
Vortex flowmeter faults can be divided into two categories: system faults and instrument faults. After a fault occurs, the system fault should be checked first, followed by the instrument fault.
. The specific common faults and their handling methods are as follows: System faults include installation and wiring errors, mismatched diameters, inconsistent flow ranges, vibration and electromagnetic interference effects, power supply problems, improper sensitivity adjustment, etc. After power on, there is fluid flow in the pipeline, but there is no signal output. Check if the instrument wiring is correct and if there is any disconnection. Incorrect wiring or disconnection can result in signal transmission failure, leading to a situation of no signal output. Check if the installation direction of the instrument is correct. The vortex flowmeter has specific installation direction requirements, and if the installation direction is incorrect, it will affect its detection of fluid signals.
