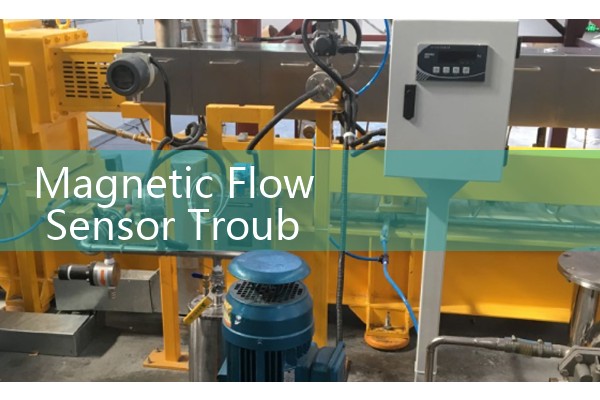

Magnetic Flow Sensor Troubleshooting & Maintenance Guide
Quick Answer: Most magnetic flow sensor problems come from electrode coating, poor grounding, air bubbles, or incorrect installation. Check the empty pipe detection status first, clean electrodes with a non-abrasive solution, and verify the grounding resistance is below 10 ohms. If your magmeter shows erratic values, send us your fluid conductivity, pipe material, and liner type for a quick diagnostic.
Magnetic flow sensors are the workhorse for wastewater, chemical dosing, and food processing plants across regions like Southeast Asia, the Middle East, and Latin America. No moving parts and a full-bore design make them reliable. However, when a magmeter starts reading low, jumping to negative values, or triggering an empty pipe alarm, the root cause is rarely the electronics. The problem sits at the electrode-fluid interface, the grounding path, or the installation upstream. Engineers at Silver Automation Instruments see these patterns again and again on customer sites from a desalination plant in Chile to a palm oil refinery in Indonesia.
Common Fault Pattern: Unstable or Noisy Flow Signal
You get a fluctuating 4-20 mA output that jumps by more than 5 percent of full scale. The first thing to check is electrode coating. In a dye factory in Thailand, we traced a 12 percent reading drift to a thin layer of iron oxide on the 316L electrodes. The fluid was a slurry with 15 percent solids. The fix was not a new flow meter. We had the site crew flush the sensor with 5 percent acetic acid solution and a soft cotton cloth. Never use a wire brush. The reading returned to within 0.5 percent of the reference value.
Another trigger is entrained air. A brewery in Queensland installed a DN80 magmeter after a centrifugal pump. The pump was drawing air through a worn shaft seal, creating small bubbles. The empty pipe detection did not trip because the bubble volume was not enough to expose the electrode fully. The signal looked like true flow but with high-frequency noise. The solution was to move the sensor 10 pipe diameters downstream of the pump discharge and fix the pump seal. In practice, a straight run of 5D upstream and 3D downstream is minimal. For fluids with a tendency to degas, use 10D upstream.
Zero Flow Offset and Negative Flow Indication
A magmeter showing a steady negative flow when the pump is off often points to a grounding issue. Magnetic flow meters need a solid zero reference. In plastic or lined steel pipes, the grounding rings or grounding electrodes carry the current back to the transmitter. If the grounding strap corrodes or the grounding ring makes poor contact, the meter picks up stray voltage. We have seen a case from a chemical blending facility in Mexico where a newly installed DN100 meter on a fiberglass pipe read minus 2.3 cubic meters per hour with the valve closed. The fix was installing a separate 316L grounding ring on the upstream side with a dedicated 10-square-millimeter copper cable to the transmitter ground terminal. Resistance between the grounding electrode and earth must be under 10 ohms. After that step, the zero point settled to 0.0 m³/h.
Empty Pipe Alarm and Detection Threshold
Empty pipe detection in a Silver Instruments magmeter compares the electrode impedance to a threshold. For water-based fluids with conductivity above 20 µS/cm, the impedance is low and the meter reports a full pipe. When a coating builds up or the fluid conductivity drops, the impedance rises and the meter can incorrectly trigger the empty pipe alarm even with fluid inside. This happens often with hipurity water or recovered condensate. One power plant in Saudi Arabia had false empty alarms on a condensate return line with actual conductivity around 5 µS/cm. The standard electrode pair struggled. We supplied a Silver Instruments magmeter model with an empty pipe detection threshold adjusted down to 3 µS/cm and a matched Hastelloy C electrode set. The false alarm disappeared. Before ordering, always share the minimum conductivity value with us.
Maintenance Steps That Prevent 80 Percent of Failures
Clean the electrodes every six months for dirty water services and every 12 months for clean liquids. Shut off the process, isolate the flow meter, and remove the sensor from the line when possible. For a fixed installation without removal, flush the pipe segment with clean water and a non-foaming cleaning agent. If you can access the electrodes through the flanges, use a l
Inspection of the cabling and junction box is also part of maintenance. Look for signs of moisture ingress. The IP67 housing of the Silver Instruments remote transmitter keeps out dust and water, but if the cable gland is not tightened properly after wiring, humid tropical air can condense inside. We recommend packing the junction box with non-acidic silicone grease in high-humidity areas like coastal Vietnam or Kenya. This simple step blocks corrosion on the output terminals.
Calibration Verification without a Proving Rig
You do not need to send the magnetic flow meter to a calibration lab every year. Most engineers use a zero check and a reference meter for in-situ verification. With a full pipe and no flow, force the output to 4 mA and read the value on the HART communicator. It should be within ±0.05 percent of span. Next, compare the magmeter reading with a known reference such as a tank level drop over 10 minutes or a portable ultrasonic clamp-on meter. The deviation should not exceed 0.5 percent of rate for a Silver Instruments magmeter with standard calibration. If you see a systematic offset, first check the excitation current and cable continuity. A weak excitation pulse gives a low flow span. If those are intact, the meter can be recalibrated using the menu-guided internal calibration routine and a known conductivity reference fluid.
When to Replace the Sensor and When to Repair
If the coil insulation resistance drops below 1 megaohm or the electrode insulator shows cracks, field repair is not reliable. In these cases, replacing the sensor insert is faster and costs less than a new complete meter. Silver Instruments supports sensor replacement inserts for DN15 through DN300 SST body meters with PTFE or PFA liners, matching the original coil housing. For larger line sizes or exotic liners like ECTFE, we often recommend replacing the entire flow tube to keep the warranty intact.
Send us your fluid chemistry (pH, concentration), temperature, pressure, pipe size, and whether you need local indication or just 4-20 mA HART output. Quote turnaround is typically within 24 hours for standard requests in Australia, Southeast Asia, and the Middle East.
FAQ
Q: Why does my magnetic flow meter show a negative flow when the pump is not running?
A: A negative offset is almost always a grounding error or stray current in the pipe. Check that a separate ground wire connects the sensor body to the same earth as the pump motor. In non-conductive pipes, add grounding rings on both flanges.
Q: How often should I clean the electrodes of a magnetic flow meter?
A: For wastewater and slurries, clean every 3 to 6 months. For clean water or finished product lines, annual cleaning is enough. If the meter shows drift or unstable readings, inspect the electrodes immediately.
Q: What does the empty pipe alarm mean and how can I fix it?
A: The empty pipe alarm triggers when electrode impedance exceeds the configured threshold. This can happen due to real empty pipe, electrode coating, or very low fluid conductivity below the meter limit. Check the process, clean the electrodes, and confirm the fluid conductivity is above the minimum specified by the sensor.
Q: Can I use a magnetic flow meter for low conductivity fluids like deionized water?
A: Standard magmeters work above 20 µS/cm. For deionized water or condensate with conductivity under 5 µS/cm, choose a meter with a special low-conductivity electrode design and adjusted excitation parameters. Provide the exact conductivity when you request a quote.
Q: How do I check if the magmeter is still calibrated without removing it from the line?
A: Do a zero check with a full pipe and no flow. The output should read close to 4.00 mA. Compare the integrated flow totalizer against a measured volume from a calibrated tank or weigh scale. If the deviation is within 0.5 percent, the calibration is valid. For a full procedure, ask our support team for the SIL-MF verification guide.
